NEW AETOS VTB Ventus Bikes V9600 Controller Gen2 Max 120V 9600A

Compatible Models

VTB V1+（V1）

SurRon Light Bee

SurRon Ultra Bee

Talaria MX3

Talaria MX4

Talaria MX5

Talaria XXX

E Ride Pro SS2.0

E Ride Pro SS3.0

E Ride Pro SR

Rerode R1

79Bike Falcon GT

79Bike Falcon Pro

Compatible Motors

More Than 40+

Compatible Batteries

More Than 30+

12S（36V）— 22S（93V）

Feature

Max line/phase current: 1200A/1600A

Peak power: 30-70kW

Operating temperature: -25℃-80℃

Controller: Sine Wave Vector Control

Absulote MAXvoltage: 30V-99V

Working voltage: 48V-93V

battery series: 14-22s(NCM)

App Introduction

Free download across multiple platforms

Throttle fine-tuning

Low battery throttling and power auto-tuning

Multiple separate programmable power settings

EBS gear adjustment

keyless entry

E-assist brake

Motor calibration

Speed calibration

Bluetooth password

Power-Off Protection (Brake, Tilt, Stand)

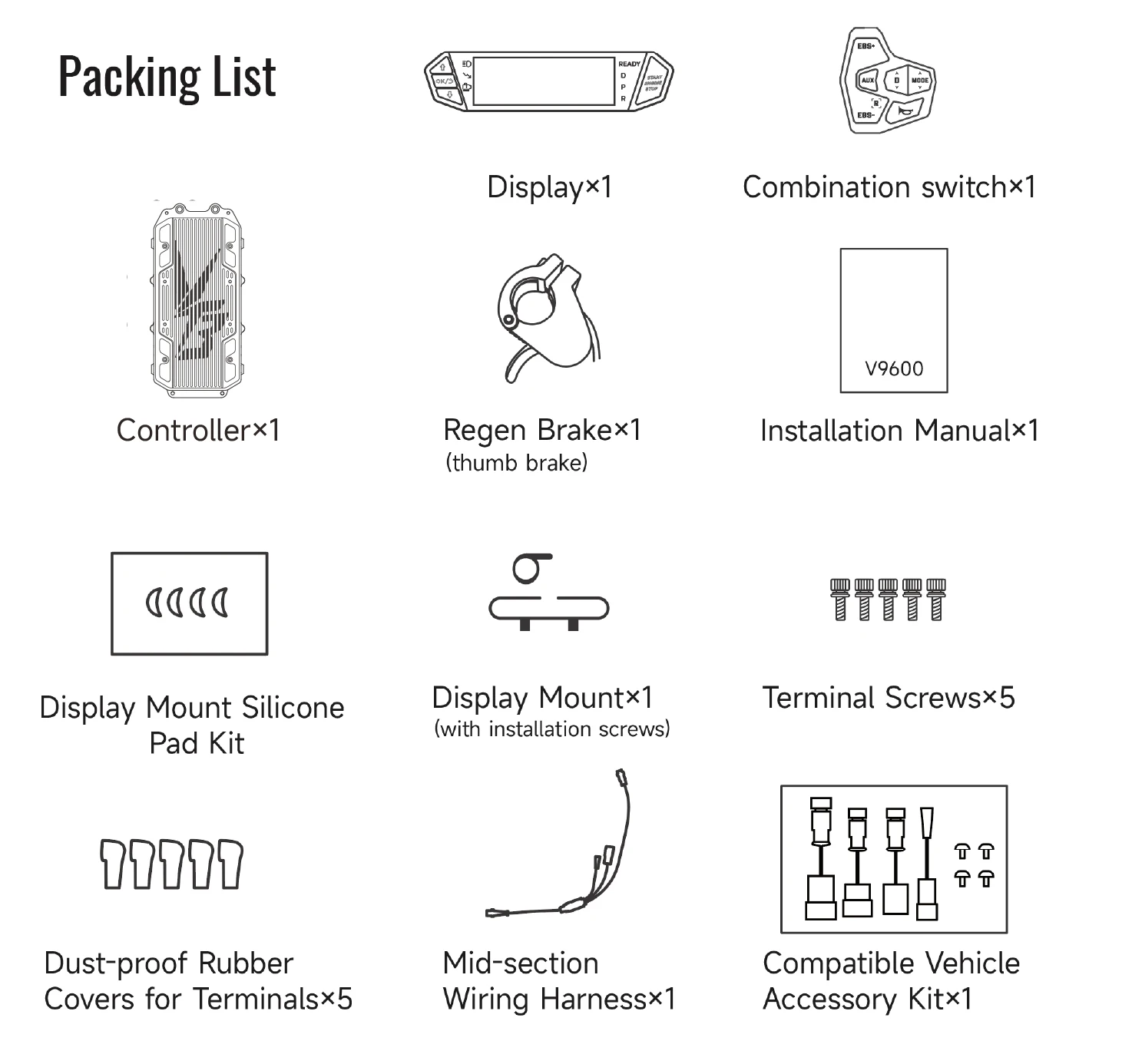

Packing List

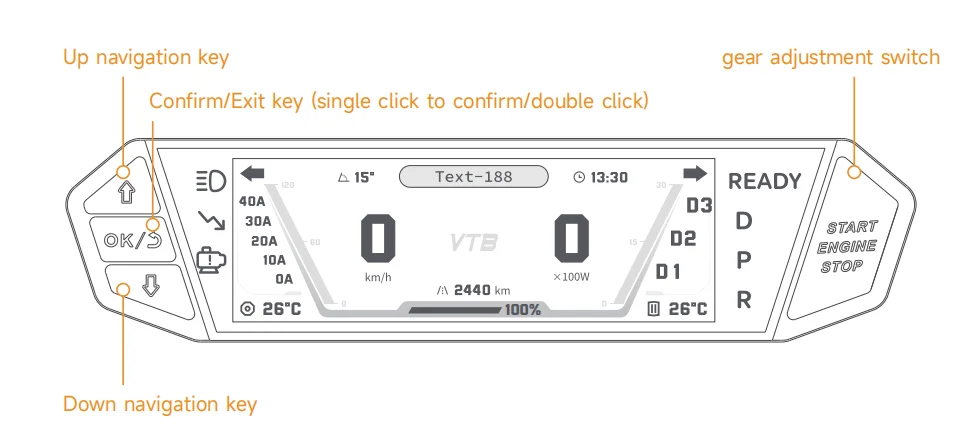

Color Display

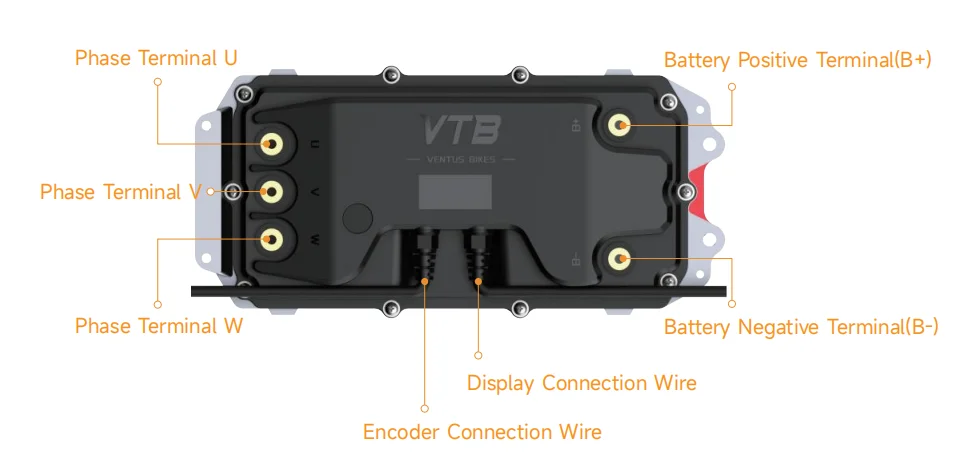

Route Description

Installation Hole Diagram

The installation holes for the Light Bee are indicated by the four positions outlinedin the rectangular frame in the diagram.

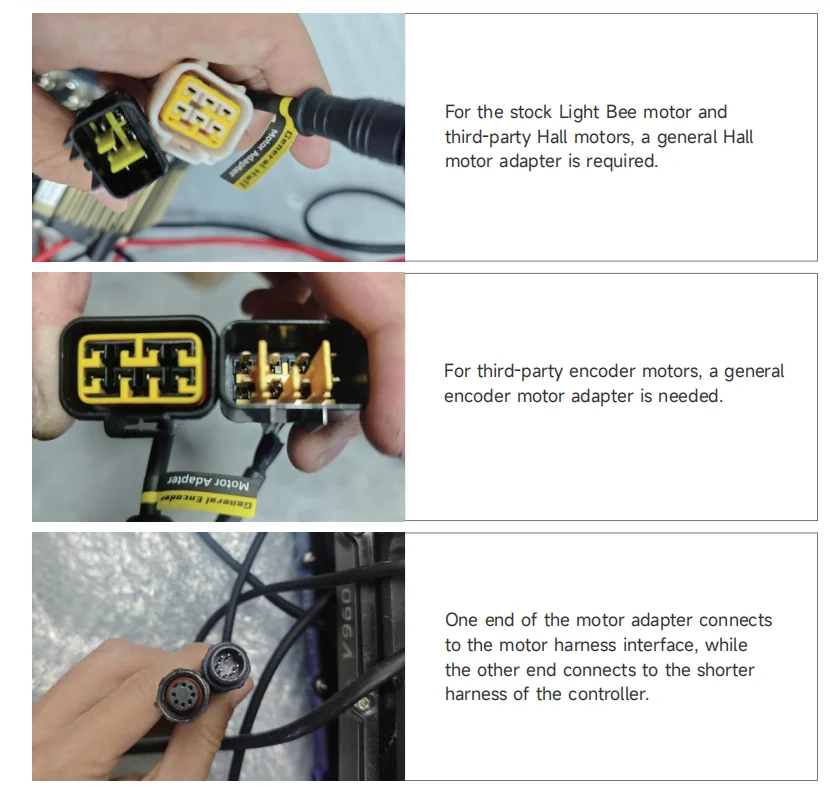

Connecting the Motor Plug

Please choose either the general encoder motor adapter or the general Hall motor adapter for installation based

on specific requirements; only one is needed. VTB is dedicated to providing comprehensive service to our

customers and therefore offers an alternative cable as a backup. We deeply appreciate your support and trust.

The stock VTB motor does not require the use of a motor adapter.
